SMC MB1B Square Tube Type Air Cylinder Standard Type Double Acting
Single Rod MB1B32-100Z MDB1B40-100Z
Order Codes:
MB1B32-100Z MB1B40-100Z MB1B50-75Z MB1B63-125Z
MB1B32-125Z MB1B40-125Z MB1B50-100Z MB1B63-150Z
MB1B32-150Z MB1B40-150Z MB1B50-125Z MB1B63-175Z
MB1B32-175Z MB1B40-175Z MB1B50-150Z MB1B63-225Z
MB1B32-200Z MB1B40-200Z MB1B50-175Z MB1B63-100Z
MB1B32-225Z MB1B40-225Z MB1B50-200Z MB1B63-250Z
MB1B32-250Z MB1B40-250Z MB1B50-225Z MB1B63-300Z
MB1B32-300Z MB1B40-300Z MB1B50-250Z MB1B63-350Z
MB1B32-350Z MB1B40-350Z MB1B50-400Z MB1B63-200Z
MB1B32-400Z MB1B40-400Z MB1B50-450Z MB1B63-400Z
MB1B32-450Z MB1B40-450Z MB1B50-350Z MB1B63-450Z
MB1B32-500Z MB1B40-500Z MB1B50-300Z MB1B63-500Z
MB1B32-50Z MB1B40-600Z MB1B50-500Z MB1B63-600Z
MB1B32-600Z MB1B40-700Z MB1B50-600Z MB1B63-700Z
MB1B32-700Z MB1B40-75Z MB1B50-700Z
MB1B32-75Z
MB1B80-25Z MB1B100-50Z MB1B125-25Z
MB1B80-50Z MB1B100-75Z MB1B125-50Z
MB1B80-75Z MB1B100-100Z MB1B125-75Z
MB1B80-100Z MB1B100-125Z MB1B125-100Z
MB1B80-125Z MB1B100-150Z MB1B125-125Z
MB1B80-150Z MB1B100-175Z MB1B125-150Z
MB1B80-175Z MB1B100-200Z MB1B125-175Z
MB1B80-200Z MB1B100-225Z MB1B125-200Z
MB1B80-225Z MB1B100-300Z MB1B125-225Z
MB1B80-250Z MB1B100-350Z MB1B125-250Z
MB1B80-300Z MB1B100-400Z MB1B125-300Z
MB1B80-350Z MB1B100-450Z MB1B125-350Z
MB1B80-400Z MB1B100-250Z MB1B125-400Z
MB1B80-450Z MB1B100-500Z MB1B125-450Z
MB1B80-500Z MB1B100-600Z MB1B125-600Z
MB1B80-600Z MB1B100-700Z MB1B125-700Z
MB1B80-700Z MB1B125-500Z
How to order:
Specifications:
| Bore size [mm] | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Action | Double acting, Single rod |
| Fluid | Air |
| Proof pressure | 1.5MPa |
| Maximum operating pressure | 1.0 MPa |
| Minimum operating pressure | 0.05 MPa |
| Ambient and fluid temperature | Without auto switch:-10 to 70°C With auto switch: - -10 to 60°C No
freezing |
| Lubrication | Not required (Non-lube) |
| Piston speed | 50 to 1000 mm/s |
| Cushion | Air cushion or Rubber bumper |
| Port size (Rc, NPT, G) | 1/8 | 1/4 | 3/8 | 1/2 |

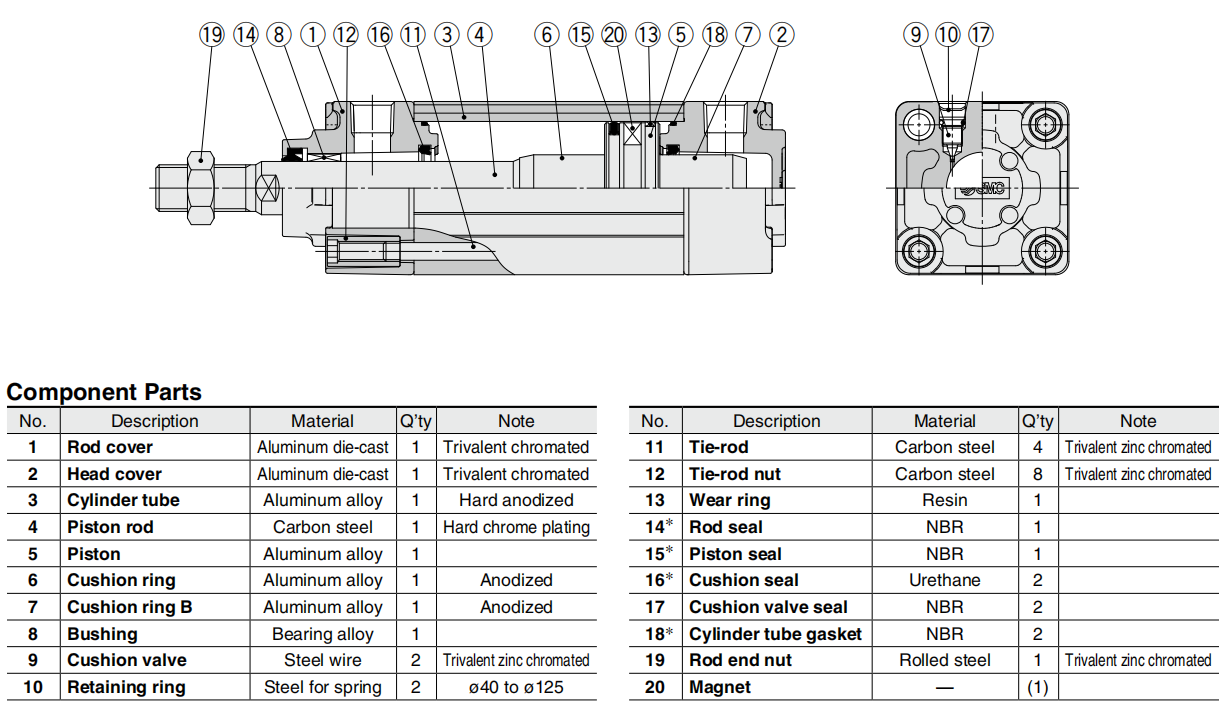

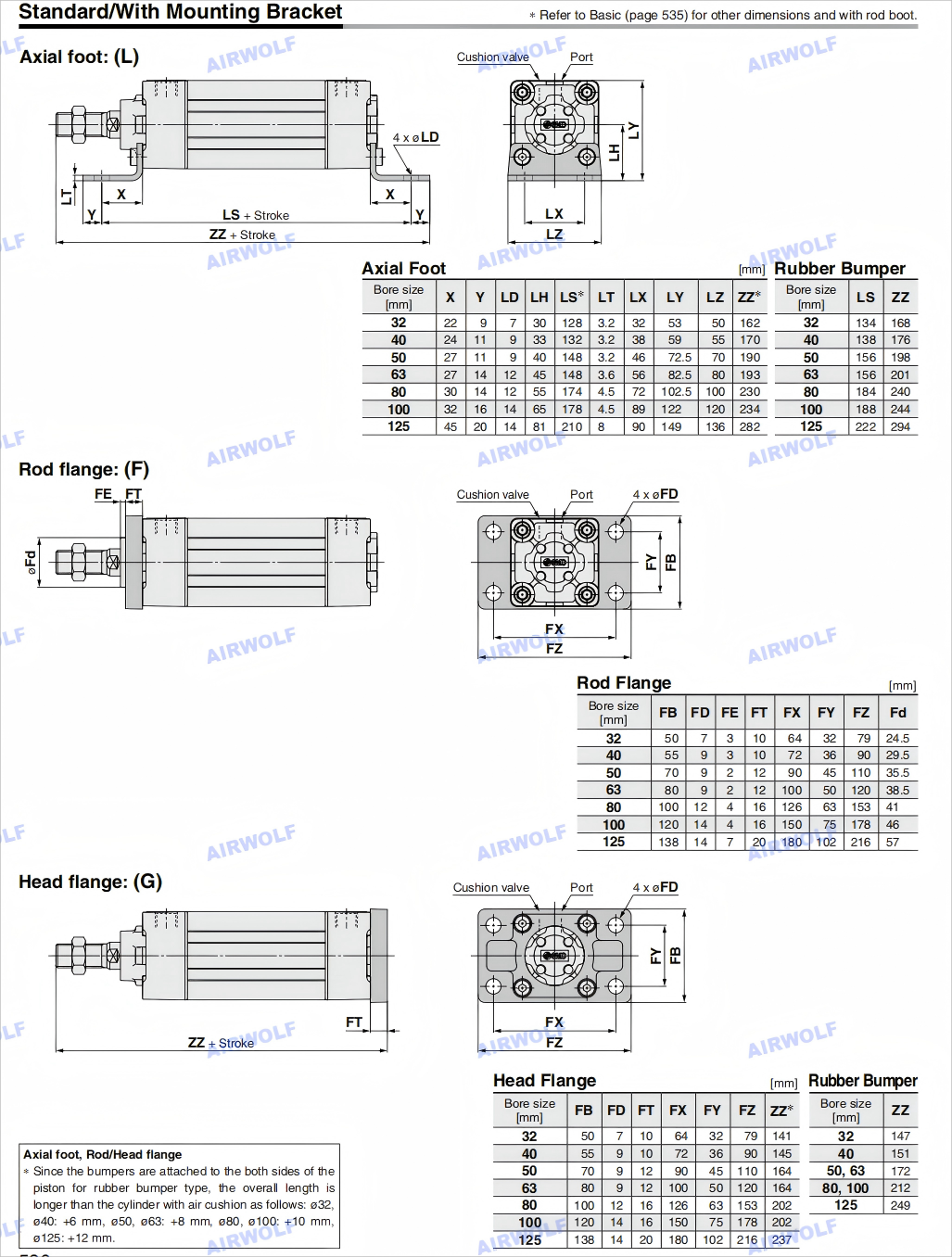

| Mounting | Basic, Axial foot, Rod flange, Head flange Single clevis, Double
clevis |
