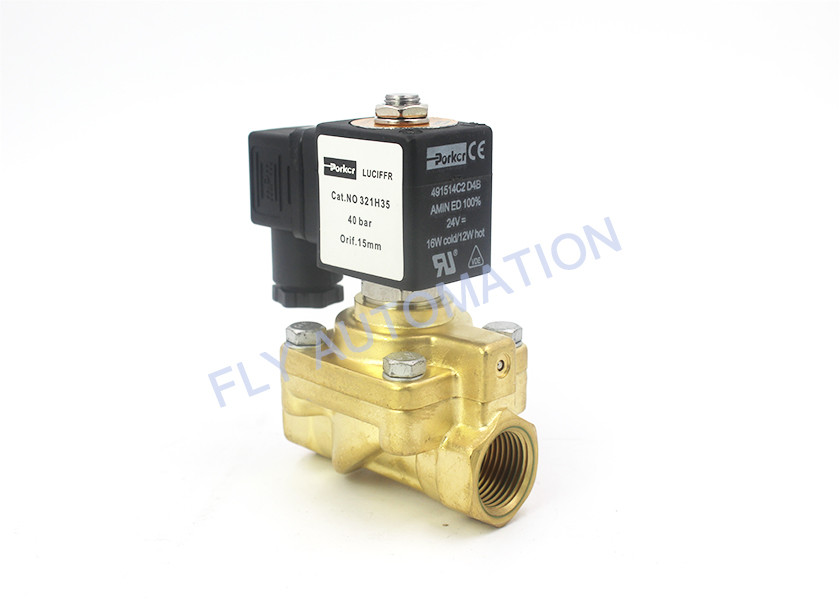

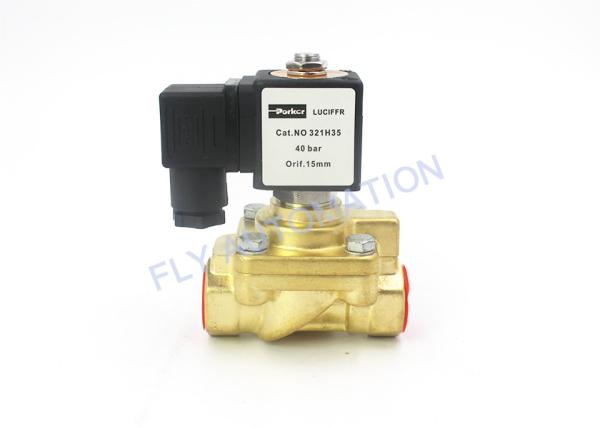

Parker 321H35 2 Way 24VDC Brass Normally Closed 1/2" General
Purpose Solenoid Valves
Parkers' 2-Way Normally Closed G 1/2" Solenoid Valves provide
operating pressures up to 40 bar and flow factors up to 4.7 m3/h.
They offer multiple body and sealing materials for all general
purpose fluid control applications.
Technical Specifications
Body Material:Brass
Voltage (V):24VDC
Power (Watts):9
Orifice 1 Size (mm):15
Coil Type:Coil for DIN plug connection, 32 mm
Flow Factor 1 (l/min):60
Seal Material:PUR
Product Series:General Purpose Solenoid Valves
Valve Type:2-Way
Function:Normally Closed
Port Size:1/2 inch
Input Voltage:24VDC
Body Material:Brass
Seal Material:PUR
Orifice 1 Size:15 mm
Flow Coefficient 1:3.6 m3/hour, 60 L/min
Power Consumption:9 W
Coil Type:Coil for DIN plug connection, 32 mm
Maximum Pressure Differential:40 bar
Minimum Pressure Differential:1.5 bar
Number of Ports:2
Actuation Type:Pilot Operated
Media:Fluids Air
Port Type:BSP
Orifice 2 Size:n/a
Flow Coefficient 2:n/a
Minimum Fluid Temperature:n/a
Maximum Fluid Temperature:n/a
Coil Specifications Met:IP65
Safety Warning
Item Information
Parker's 2-Way Normally Closed G 1/2" Solenoid Valves are used in a
wide variety of applications with or without pressure differential.
Ideally suited for air, liquids and gases, these valves are mainly
available with brass or stainless steel body associated to a large
range of sealing materials offering vast chemical compatibilities .
Markets:
• Beverage
• Life Science
• Industrial Equipment
Features/Benefits:
• Best performances for minimum and maximum operating pressure
differential
• One of the Fastest in electrical and hydraulic opening response
time
• Modular concept: a wide range of electrical parts increases the
versatility of this product
• Robust design: areas under mechanical stress have been studied
and oversized
• Manual override control option: valve can be easily activated
also when there’s no energy supply
• Easy access to internal parts, to permit easy and quick
maintenance
• Media: Air, gases, water and light oil
Applications:
• Compressors
• Water dispensing & purification
• Cooling systems
• Sterilizers
• Analyzers and diagnostic equipment
• Medical and dental devices
• Welding equipment
• Lubrication equipment
• Beverage dispensing & vending machines
• Oil burners
• Humidification and misting equipment
• Mobile equipment
• Textile and dry cleaning machines
• Irrigation
