SMC Compact rotary table MSAQB10A Pneumatic Cylinder Rack Pinion
Style
Ordering Code: MSQB10A, Any other types please contact freely.

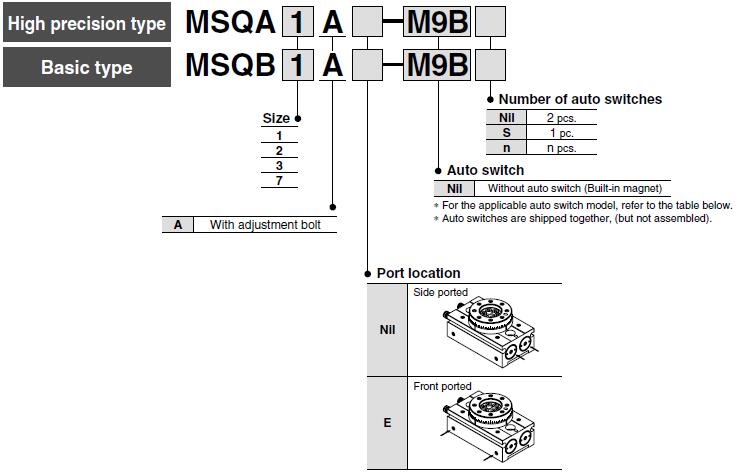

Order code
1) TN series are alll with magnet
2) When the thread is standard, the code is blank
Specifications
| Size | 10 | 20 | 30 | 50 | 70 | 100 | 200 |
| Fluid | Air (non-lube) |
Max. operating
pressure | With adjustment bolt | 1 Mpa |
| With internal shock absorber | 0.6 Mpa (Note 1) |
Min. operating
pressure | Basic type | 0.1 Mpa |
| High precision type | 0.2 Mpa | 0.1 Mpa | |
| Ambient and fluid temperature | 0 to 60 ℃ (with no freezing) |
| Cushion | With adjustment bolt | Rubber bumper |
| With internal shock absorber | Shock absorber |
| Shock absorber model | RBA0805
-X692 | RBA1006-X692 | RBA1411
-X692 | RBA2015-X821 | RBA2725
-X821 |
| Angle adjustment range | 0 to 190° (note 2) |
| Maximum rotation | 190° |
| Cylinder bore size | ø15 | ø18 | ø21 | ø25 | ø28 | ø32 | ø40 |
| Port size | End ports | M5 x 0.8 | Rc 1/8 |
| Side ports | M5 x 0.8 |
Product Features
1.Enterprises standard is implemented.
2.Embeded installation and fixation mode saves the installation
space.
3.It is good resistance to bending and twisting moments.
4. Mounting holes on three sides facilitates multi-position
mounting.
5.Bumper in front of the barrel can adjust the stroke of cylinder
and relieve impact.
6.Standard configuration of this series has magnet and the type
without magnet is not available.
MSQ weight
| Size | 10 | 20 | 30 | 50 | 70 | 100 | 200 |
| Basic type | With adjustment bolt | 530 | 990 | 1290 | 2080 | 2880 | 4090 | 7580 |
| With internal shock absorber | 540 | 990 | 1290 | 2100 | 2890 | 4100 | 7650 |
| High precision type | With adjustment bolt | 560 | 1090 | 1410 | 2240 | — |
| With internal shock absorber | 570 | 1090 | 1410 | 2260 |
Rotation Direction and Rotation Angle
1. The rotary table turns in the clockwise direction where the A port is pressurized, and in the counterclockwise direction when the
B port is pressurized.
2. By adjusting the adjustment bolt, the rotation end can be set
within the ranges shown in the drawing for the desired rotation
angle.
3. The rotation angle can also be set on a type with internal
absorber.
With adjust bolt, internal shock absorber
| Size | Adjustment angle per rotation of
angle adjustment screw |
|
| 10 | 10.2° |
| 20 | 7.2° |
| 30 | 6.5° |
| 50 | 8.2° |
| 70 | 7.0° |
| 100 | 6.1° |
| 200 | 4.9° |
Note:
1. The drawing shows the rotation range of the positioning pin
hole.
2. The pin hole position in the drawing shows the counterclockwise
rotation end when the adjustment bolts A and B are tightened
equally and the rotation is adjusted 180°.
Rotation Range Example
1. Various rotation ranges are possible as shown in the drawings below
using adjustment bolts A and B.
(The drawings also show the rotation ranges of the positioning pin
hole.)
2. The rotation angle can also be set on a type with inertial
absorber.
Installation Usage
1.When load changes in the work, the cylinder with abundant output
capacity shall be ed.
2.The medium used by cylinder shall be filtered to 40μm or below.
3.Necessary protection measure shall be taken in the environment
with higher humidity, much dust or water drops, oil dust and
welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder
is connected with pipeline to prevent the entrance of particles
into the cylinder.
5.As both the front cover and piston are short, too large stroke
can not be ed.
6.Relative cylinder with high temperature resistance or corrosion
resistance shall be chosen under the condition of high temperature
or corrosion.
7.The cylinder shall avoid redial load in operation to maintain the
normal and extend service life.
8.Anti-freezing measure shall be adopted under low temperature
environment to prevent moisture freezing.
9.If the cylinder is dismantled and stored for a long time, please
conduct anti-rust treatment to the surface. Anti-dust cap shall be
ed into the inlet and outlet ports. As the precision of the
manufacture and guide is high, Please do not dismantle the fixed
block or cylinder cover.
