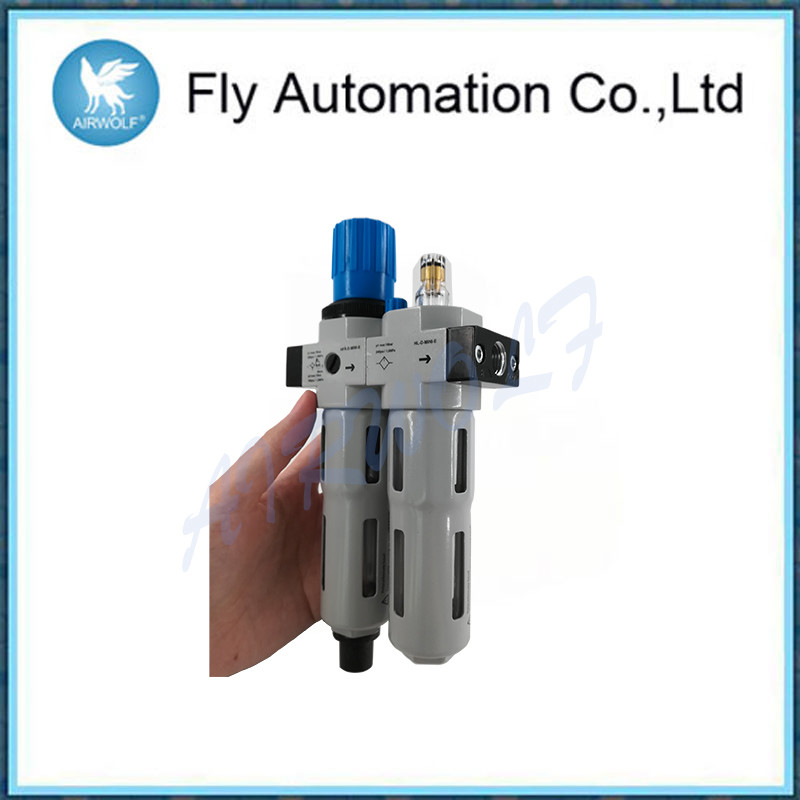

FESTO FRC-1/4-D-MINI-E 1/4" Filter Regulator Aluminum Alloy White
and Blue High Flow Rate FRL Unit
Product feature
1. Filter, regulator and lubricator functions in a single unit.
2. High flow rate and highly efficient removal of contaminants.
3. Good regulating characteristics with minimal pressure
hysteresis.
4. Setting values are secured by locking the rotary knob.
5. Lockable rotary knob (via accessories).
6. Two pressure regulation ranges: 0.5~7bar and 0.5~12bar.
7. Two pressure gauge connections for different fitting options.
8. Choice offilter cartridges: 5µm or 40µm.
9. With manual, semi-automatic or fully automatic condensate drain.
| General technical data |
| Size | Micro | Mini | Midi | Maxi |
| Pneumatic connection | 1/8" | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" |
| Operating medium | Compressed air |
| Design | Filter regulator |
| Proportional standard mist lubricator |
| Type of mounting | Via accessories |
| In-line installation |
| Assembly position | Vertical ±5° |
| Grade of filtration [µm] | 5 | 5 or 40 |
| Max. hysteresis [bar] | 0.3 | 0.2 | 0.4 |
| Pressure regulation range [bar] | 0.5~7 | 0.5~7 |
| 0.5~12 |
Pressure
indication | | Via pressure gauge |
| Port connection | M5 | G1/8 | G1/4 | G1/4 |
| Max. condensate volume [cm3] | 3 | 22 | 43 | 80 |
| Input pressure [bar] |
| Condensate drain | manual | 0~10 | 0~16 |
| semiautomatic | 1~10 | - |
| fully automatic | - | 2~12 |
Dimensions
Weight
| Size | Micro | Mini | Midi | Maxi |
| Female thread | Connecting plate | Connection
1/2NPT, 3/4NPT | Connection 1NPT |
| With pressure gauge |
| FRC-… | 113 | 133 | 660 | 1440 | 2390 | 2520 |
| Without pressure gauge |
| FRC-… | 103 | 123 | 600 | 1350 | 2280 | 2460 |
