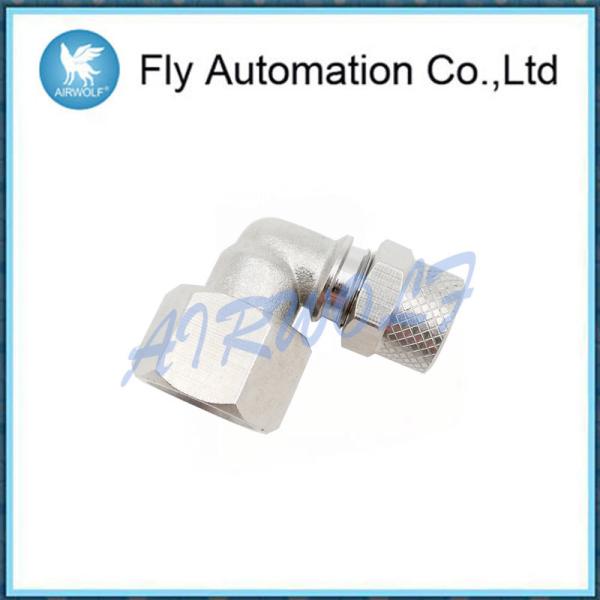

1493 Series G1/4" internal thread Body and Nut Nickel-plated brass
| Materials | body and nut: nickel-plated brass
O-ring: NBR
thread seals: PTFE, PA, AL |
| Threads | GAS conical ISO 7 (BSPT)
GAS cylindrical ISO 228 (BSP)
M5 - M6 NPT and metric (available on request) |
| Pressure | the nominal pressure of the fittings is always higher than the
pressure of the tube |
| Tube to connect | PA polyethylene braided PVC rilsan PU, Hytrel Polyester |
| Diameters | 5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm |
| Fluid | compressed air low pressure fluids |
| Temperature | -20°C to 80°C
NOTE: for a better use of the fitting we recommend to check the
tubing
specifications. |
1. Series 1000 rapid push-in fittings can be easily installed.
2. The push-in locking nuts can be tightened both manually and with
a spanner even in case of stiff tubes like the PA or the Hytrel
Polyester.
3. The special shape of the guiding cone ensures that the tube
cannot be accidentally cut.
NingboFly Automation was founded in 2006.
We have many years experience in producing pneumatic components.
Pneumatic components includes pneumatic fittings, pulse valves,
water valves, induction coil,
solenoid valves, manual valves, air control valves, angle seat
valve, air preparation units,
cylinders, air gun, air brush, machinery parts, PU/PE pneumatic &
hydraulic tubes and pneumatic
accessories.
Our factory is in the national tourist resort---Xikou Town, Ningbo,
China, adjoins the world-class
deep water harbor------Beilun port, 2 hours driving to Shanghai,
only 20kms away from Ningbo
Lishe International Airport, whereby it enjoys great traffic
convenience.
Our products quality is strictly controlled according to ISO
quality standard. The perfect producing
and testing equipments, advanced quality management system,
professional manufacture and
sales team guaranteed our forceful before-sale and after-sale
service.
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex,
TNL will be normal ways, If you require use of a courier, we can do
it.
4. Also we can send by your delivery acount if you want.
Samples
You can send a sample to customize the products, we have many
engineers can help it; If you want a product of mine, but you are
not sure if it's what you want, so you can ask for a sample from
me, it will be free.
Quality Standards
The company for the products are brand new original products, no
second-hand and refurbished products, or leave a compensable ten
and return the full amount, but the buyer due to our purchase of
model error is not responsible for returns, another of the
company's sales of products enjoy one year from the date of
shipment quality assurance, according to the original quality
standards, during warranty with product problems, need confirmation
testing by the manufacturer, the supplier to be solved, the demand
side due to storage, use, poor maintenance caused by lower-quality
product, and not raise objections.
