Low Current Pneumatic Solenoid Valves 180-4E1 Full-Option Type CE

The 180 series Solenoid Valves, which achieve highly reliable, powerful, and low current basic.

performance in a compact, thin body, offer a simple and flexible standard type,

and a full-option type with advanced maintenance features, to become still more user-friendly.

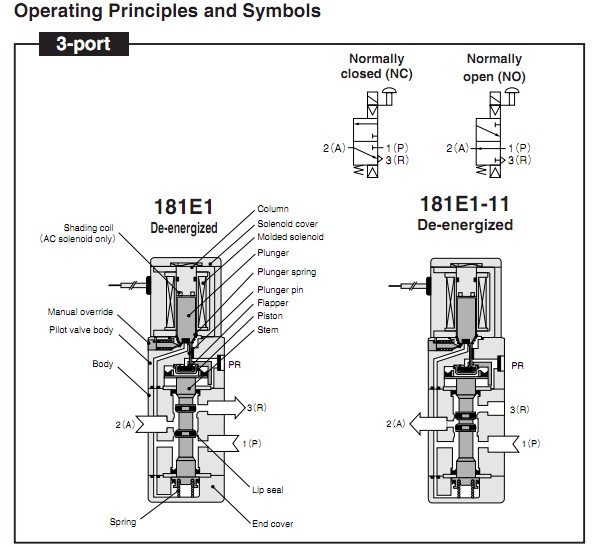

Basic Models and Valve Functions

Basic model	Direct piping, F, FE type manifolds	181E1 (180E1^Note)	180-4E1 180-4E2	180-4KE2^Note	183-4E2	183-4KE2
Item	Sub-base piping, A, AJ type manifolds	A181E1 (A180E1^Note)	A180-4E1 A180-4E2 A180-4ME2	A180-4KE2^Note	A183-4E2 A183-4ME2	A183-4KE2
Number of positions		2 positions			3 positions
Number of ports		2, 3 ports	5 ports
Valve function		Normally closed (NC, standard) or Normally open (NO, optional)	Single solenoid, Double solenoid or Tandem solenoid	Twin solenoid	Closed center (standard), Exhaust center (optional), Pressure center (optional) or Tandem solenoid	Closed center (standard), Exhaust center (optional), Pressure center (optional) or Twin solenoid

Solenoid Specifications:

Basic model	Direct piping, F, FE type manifolds		181E1 (180E1)	180-4E1 180-4E2	180-4KE2	——
Item	Sub-base piping, A, AJ type manifolds		A181E1 (A180E1)	A180-4E1 A180-4E2	A180-4KE2	A180-4ME2
Media			Air
Operation type			Internal pilot type
Effective area〔Cv〕^{Note 1} mm²				10.2 [0.57〕		8.2〔0.46〕
Port size ^{Note 2}			Rc1/8
Lubrication			Not required
Operating pressure range		MPa {kgf/cm²} [psi.]			0.15 〜0.7{1.5 〜7.1} [22
Proof pressure MPa {kgf/cm²} [psi.]			1.05 {10.7} [152]
Response time ^{Note 3}		DC12V, DC24V	15/25 or below	15/25〔20〕or below		20 or below
ON/OFF	ms	AC100V, AC200V	15/15 or below	15/15〔15〕or below		—
Maximum operating frequency Hz			5
Minimum time to energize for self holding ms			—	50(O180-4E2)	⁵⁰
Operating temperature range (atmosphere and media) °C [°F]			5〜50 [41〜122]
Shock resistance		m/s² {G}	1373.0 {140.0} (Axial direction 294.2 {30.0})
Mounting direction			Any
